Tungsten carbide sintered Saw Tip and Groover Tip profiles

Tungsten carbide sintered Saw Tip and Groover Tip profiles are used for both wood and metal cutting applications. Tungsten carbide sintered Saw Tip and Groover Tip profiles are produced using automated press tooling. Standard Kerf widths dimensions range from between 2.1mm and 8.0mm. Larger Saw Tip profiles and hand shaped tip profiles to customer specification are available upon request. Other products that can be made to order include: Wear Blocks Bandsaw Blade Guides Shaped Tips for Cutter Blocks

Hanns CEO/Chinatungten.com

Solid Tungsten Carbide Wear Resistant Components and Hard Facings.

Solid Tungsten Carbide Wear Resistant Components and Hard Facings. Solid Tungsten Carbide Wear Resistant Components and Hard Facings are such as solid and sleeved Rollers, Slippers, Slipper Ends, Cheek Plates, Curved & Flat Guide Rails, Wear Plates and Mould Liners. Solid Tungsten Carbide Wear Resistant Components and Hard Facings are such as  wear resistant grade tungsten carbide grades for use on individual components and piece parts. Components can be supplied brazed, glued or mechanically retained on to steel backings. In-house grinding facilities including Wire Cut EDM mean that items can be supplied fully ground to customer drawing.
Solid Tungsten Carbide Wear Resistant Components and Hard Facings are such as  following items in either solid or sleeved Tungsten Carbide or in conjunction with brazed, glued or mechanically retained steel hubs and backings. Brick Mould & Refractory Liners Wear Plates, Tracks & Tips Crusher Blocks & Inserts Large & Small Slippers/Thicknessers Small Profiled Rollers & Slippers Segmented Rollers Curved & Flat Guide Rails

Hanns CEO/Chinatungten.com

Tungsten Carbide Products for Oil and Gas Industry

Tungsten Carbide products for use in a wide range of Oil and Gas Industry applications including:

• Flow Trim and Seat components and assemblies
• Centrifuge Tile assemblies
• Valve and Gauge components
• Stabilizer Inserts
• Plungers

More details, please visit the web site links to the title.

Hanns CEO/Chinatungten.com

The Application of Tungsten Carbide Components

Tungsten Carbide Components and sub-assemblies across many industry sectors, some of which are listed below.

General	-	Pressed & Hand Shaped Tips, Blanks & Blocks, As-Sintered & Ground Rod, Bushes & Sleeves
Wear Parts	-	Crusher & Scraper Tips, Bar Hammers, Impact & Wear Plates, Lifters & Liners, Plain Bearings
Saw Tips	-	Circular Saw & Groover Tips for Metal, Wood & Masonary Tips, Router and special profiled Cutting Tips and inserts for Drilling, Tunnelling & Mining
Oil & Gas	-	Choke Valves and Flow Trim Assemblies including Plugs, Cages and Seats, Plungers, Centrifuge Tiles, Wear Sleeves, Stabiliser Inserts, Guides & Seal Rings, Weights and Choke Beans
Brick & Roof Tiles	-	Mould Liners, Flat Rollers, Profiled Slippers & Rollers, Cheek & Roller End Plates, Wear Tracks & Guides
Tooling	-	Powder Compaction Tools, Metal Can Tooling, Centres, Boring Bars, Gun Drill Bushes, Steadies
Metal Forming	-	Hot and Cold Heading Die Inserts & Bushes, Swaging Blocks, Punches & Dies
Wire & Tube	-	Turks Head & Wire Flattening Rolls, Wire Drawing, Extrusion, Swaging & Shaving Dies, Nibs and Points, Tube Weld Rolls, Forming Dies, Floating Dies, Plugs & Bullets, Eyelets
Cutters & Knives	-	Paper and Tobacco Knives & Anvils Tipped Shearing Blades
Nozzles	-	Shot Blast, Special Venturi Nozzles & Lance Tips

Hanns CEO/Chinatungten.com

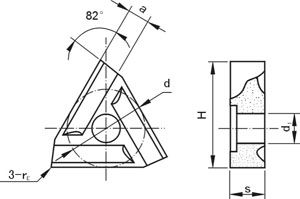

Tungsten Carbide Mechanically Clamped Inserts Type

Tungsten Carbide Mechanically Clamped Inserts Type 3C

Type Dimension(mm) Approx unit weight(g) d s r a≈ d1 H YG6 YG8 YT5 YT14 31003C 10.0 4.5 0.3 2.4 4.2 14.0 7.4 7.2 6.3 5.6 31003CL 31303C 13.0 5.5 0.3 3.4 5.2 18.2 15.3 15.1 13.0 11.5 31303CL 31603C 16.0 7.0 0.3 4.4 6.2 22.6 29.5 29.2 25.7 22.9 31603CL 31905C 19.0 8.5 0.5 5.4 7.2 26.0 49.5 49.0 43.0 38.2 31905CL

Hanns CEO/Chinatungten.com

Tungsten Carbide Mechanically Clamped Inserts Type

 Tungsten Carbide Mechanically Clamped Inserts Type 3D



Type Dimension(mm) Approx unit weight(g) d s r a≈ d1 H YG6 YG8 YT5 YT14 31003D 10.0 4.5 0.3 3.4 4.2 14.0 7.5 7.3 6.3 5.6 31003DL 31303D 13.0 5.5 0.3 4.4 5.2 18.2 15.3 15.0 13.2 11.7 31303DL 31603D 16.0 7.0 0.3 5.0 6.2 22.6 29.3 29.0 25.6 22.8 31603DL 31905D 19.0 8.5 0.5 5.7 7.2 26.0 48.5 48.0 43.4 38.6 31905DL

Hanns CEO/Chinatungten.com

Tungsten Carbide Mechanically Clamped Inserts

Type 3F

Type Dimension(mm) Approx unit weight(g) d s r a≈ d1 H YG6 YG8 YT5 YT14 31005F 10.0 4.5 0.5 2.4 4.2 14.5 7.0 6.8 6.2 5.5 31005FL 31305F 13.0 5.5 0.5 3.4 5.2 19.0 15.0 14.8 12.9 11.4 31305FL 31310F 13.0 5.5 1.0 4.4 5.2 18.5 14.5 14.2 12.7 11.3 31310FL 31610F 16.0 7.0 1.0 5.4 6.2 23.0 28.4 28.0 24.3 21.5 31610FL

 Hanns CEO/Chinatungten.com

TUNGSTEN HISTORY, MINES AND PRODUCTS 1932-1933

Kiessling, O. E. / Minerals yearbook 1932-33
Year 1931-32 (1933)

Hess, Frank L.
Tungsten ,   pp. 271-[280]

Hanns CEO/Chinatungten.com

Main Application of Tungsten

Main Application of Tungsten
Tungsten (W) is a metal with a wide range of uses, the largest of which is as tungsten carbide in cemented carbides.   Cemented carbides (also called hardmetals) are wear-resistant materials used by the metalworking, mining, and construction industries.  Tungsten metal wires, electrodes, and/or contacts are used in lighting, electronic, electrical, heating, and welding applications.  Tungsten is also used to make heavy metal alloys for armaments, heat sinks, and high-density applications, such as weights and counterweights; superalloys for turbine blades; tool steels; and wear-resistant alloy parts and coatings.  Tungsten composites are used as a substitute for lead in bullets and shot.  Tungsten chemical compounds are used in catalysts, inorganic pigments, and high-temperature lubricants.
